Dry/Oil-free scroll vacuum pump, 1000 L/min, Three Phase, Horizontal Inlet
SKU: ISP-1000E-TH
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise level: 67 (74 with air flushing)
• Pump Speed: 1000 L/min
• Final pressure (50Hz): 1
• Motor power (kW): 1.4
• Voltage Third Phase: 200, 208, 230, 380, 450, 460
• Weight Third Phase: 68kg
• Water vapor capacity (g/Tag): 25 (with air flushing)
• Air flushing (L/min): 40 L/min
• Inlet connection NW: 40
• Outlet connection NW: 40
• Cooling system: Air-cooled
• Ambient temperature (°C): 10~40
£ 11,899.00 11899.0 GBP
Dry/Oil-free scroll vacuum pump, 1000 L/min, Three Phase, Vertical Inlet
SKU: ISP-1000E-TV
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise level: 67 (74 with air flushing)
• Pump Speed: 1000 L/min
• Final pressure (50Hz): 1
• Motor power (kW): 1.4
• Voltage Third Phase: 200, 208, 230, 380, 450, 460
• Weight Third Phase: 68kg
• Water vapor capacity (g/Tag): 25 (with air flushing)
• Air flushing (L/min): 40 L/min
• Inlet connection NW: 40
• Outlet connection NW: 40
• Cooling system: Air-cooled
• Ambient temperature (°C): 10~40
£ 11,899.00 11899.0 GBP
Dry/Oil-free scroll vacuum pump, 250 L/min, Single Phase, Vertical Inlet
SKU: ISP-250E-SV
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise Level: 58 (66 with air flushing)
• Pump Speed: 250 L/min
• Final Pressure (50Hz): 1.6
• Motor Power (kW): 0.4
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Three Phase: 200, 208, 230, 380, 350, 460
• Weight Single Phase: 25
• Weight Third Phase: 23
• Water Vapor Capacity (g/Tag): 25 (with air flushing)
• Air Flushing (L/min): 10
• Inlet Connection NW: 25
• Outlet Connection NW: 16
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5 ~ 40
£ 4,399.00 4399.0 GBP
Dry/Oil-free scroll vacuum pump, 250 L/min, Three Phase, Vertical Inlet
SKU: ISP-250E-TV
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise level: 58 (66 with air flushing)
• Pump Speed: 250 L/min
• Final pressure (50Hz): 1.6
• Motor power (kW): 0.4
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection).
• Voltage Three Phase: 200, 208, 230, 380, 350, 460
• Weight Single Phase: 25
• Weight Third Phase: 23
• Water vapor capacity (g/Tag): 25 (with air flushing)
• Air flushing (L/min): 10
• Inlet connection NW: 25
• Outlet connection NW: 16
• Cooling system: Air-cooled
• Ambient temperature (°C): 5 ~ 40
£ 4,399.00 4399.0 GBP
Dry/Oil-free scroll vacuum pump, 50 L/min, Single Phase, Vertical Inlet
SKU: ISP-50-SV2
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise Level (dB): 48
• Pump Speed (L/min): 50
• Final Pressure (50Hz): 20
• Motor Power (kW): 0.1
• Voltage: AC 100 V; AC 200 V; AC 230 V
• Weight (KG): 12
• Water Vapor Capacity (g/Tag): 3 (with air flushing)
• Air Flushing (L/min): 4
• Inlet Connection NW: 25
• Outlet Connection NW: 16
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5~40
£ 3,030.00 3030.0 GBP
Dry/Oil-free scroll vacuum pump, 500 L/min, Single Phase, Horizontal Inlet
SKU: ISP-500C-SH
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise level: 60 (68 with air flushing)
• Pump Speed: 500 L/min
• Final pressure (50Hz): 1
• Motor power (kW): 0.6
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Third Phase: 200, 208, 230, 380, 450, 460
• Weight Single Phase: 44kg
• Weight Third Phase: 38kg
• Water vapor capacity (g/Tag): 25 (with air flushing)
• Air flushing (L/min): 10 L/min
• Inlet connection NW: 40
• Outlet connection NW: 25
• Cooling system: Air-cooled
• Ambient temperature (°C): 5~40
£ 5,699.00 5699.0 GBP
Dry/Oil-free scroll vacuum pump, 500 L/min, Single Phase, Vertical Inlet
SKU: ISP-500C-SV
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise level: 60 (68 with air flushing)
• Pump Speed: 500 L/min
• Final pressure (50Hz): 1
• Motor power (kW): 0.6
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Third Phase: 200, 208, 230, 380, 450, 460
• Weight Single Phase: 44kg
• Weight Third Phase: 38kg
• Water vapor capacity (g/Tag): 25 (with air flushing)
• Air flushing (L/min): 10 L/min
• Inlet connection NW: 40
• Outlet connection NW: 25
• Cooling system: Air-cooled
• Ambient temperature (°C): 5~40
£ 5,699.00 5699.0 GBP
Dry/Oil-free scroll vacuum pump, 500 L/min, Three Phase, Horizontal Inlet
SKU: ISP-500C-TH
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise level: 60 (68 with air flushing)
• Pump Speed: 500 L/min
• Final pressure (50Hz): 1
• Motor power (kW): 0.6
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Third Phase: 200, 208, 230, 380, 450, 460
• Weight Single Phase: 44kg
• Weight Third Phase: 38kg
• Water vapor capacity (g/Tag): 25 (with air flushing)
• Air flushing (L/min): 10 L/min
• Inlet connection NW: 40
• Outlet connection NW: 25
• Cooling system: Air-cooled
• Ambient temperature (°C): 5~40
£ 5,699.00 5699.0 GBP
Dry/Oil-free scroll vacuum pump, 500 L/min, Three Phase, Vertical Inlet
SKU: ISP-500C-TV
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise Level: 60 (68 with air flushing)
• Pump Speed: 500 L/min
• Final Pressure (50Hz): 1
• Motor Power (kW): 0.6
• Voltage Single Phase: 100, 115, 200, 230 (with temperature protection)
• Voltage Third Phase: 200, 208, 230, 380, 450, 460
• Weight Single Phase: 44kg
• Weight Third Phase: 38kg
• Water Vapor Capacity (g/Tag): 25 (with air flushing)
• Air Flushing (L/min): 10 L/min
• Inlet Connection NW: 40
• Outlet Connection NW: 25
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5~40
£ 5,699.00 5699.0 GBP

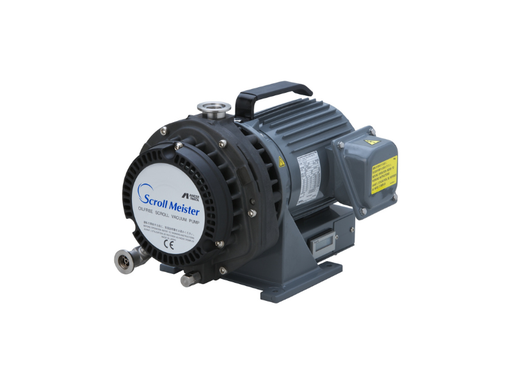

Dry/Oil-free scroll vacuum pump, 90 L/min, Single Phase
SKU: ISP-90
ISP pumps are perfectly suited for laboratories and clean room environments where low noise is also important.

Specification:

• Noise Level: 52 db
• Pump Speed: 90
• Final Pressure (50Hz): 5
• Motor Power (kW): 0.15
• Voltage: 100, 115, 200, 230 (with temperature protection)
• Weight: 14
• Water Vapor Capacity (g/Tag): 5 (with air flushing)
• Air Flushing (L/min): 9
• Inlet Connection NW: 25
• Outlet Connection NW: 16
• Cooling System: Air-cooled
• Ambient Temperature (°C): 5~40
£ 3,399.00 3399.0 GBP
