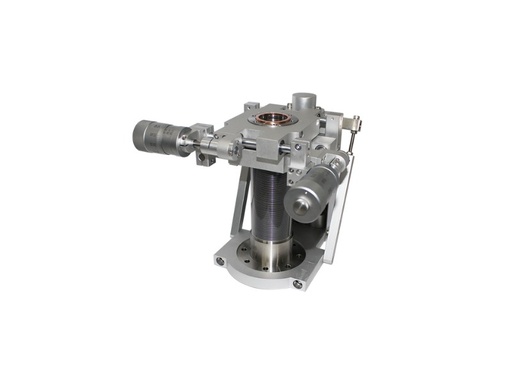

Compact XYZ Stage, 100mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange
SKU: SXYZ63Z100
The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

• Working Pressure: 10-11 mbar~1 bar
• Manual Actuator
• Bakeable to 150℃
• Welded Bellows Seal with SS 316
• Micrometer with 10um Resolution
• Z-motion scale in 1mm increment
• Top mounting flange: CF35, tapped hole
• Bottom mounting flange: CF63, clear hole
£ 5,534.12 5534.12 GBP
Compact XYZ Stage, 150mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange
SKU: SXYZ63Z150
The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

• Working Pressure: 10-11 mbar~1 bar
• Manual Actuator
• Bakeable to 150℃
• Welded Bellows Seal with SS 316
• Micrometer with 10um Resolution
• Z-motion scale in 1mm increment
• Top mounting flange: CF35, tapped hole
• Bottom mounting flange: CF63, clear hole
£ 5,059.76 5059.76 GBP
Compact XYZ Stage, 75mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange
SKU: SXYZ63Z75
The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

• Working Pressure:10-11 mbar~1 bar
• Manual Actuator
• Bakeable to 150℃
• Welded Bellows Seal with SS 316
• Micrometer with 10um Resolution
• Z-motion scale in 1mm increment
• Top mounting flange: CF35, tapped hole
• Bottom mounting flange: CF63, clear hole
£ 4,392.16 4392.16 GBP
