Edge Welded Bellows, CF16, 16 mm ID × 28 mm OD, 28 mm Stroke, 52-80 mm Length Range

Edge Welded Bellows, CF16, 16 mm ID × 28 mm OD, 28 mm Stroke, 52-80 mm Length Range

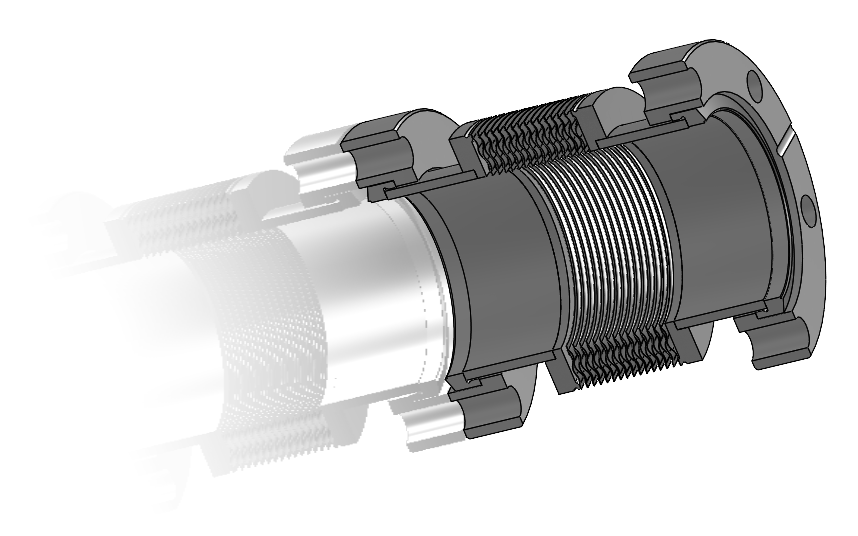

CF16 flanged edge welded bellows with a 16 mm internal diameter, 28 mm external diameter and 28 mm stroke. Its compact size makes it ideal for instrumentation ports, vacuum gauges, feedthroughs and small UHV assemblies where installation space is limited.

£ 320.00 320.0 GBP £ 320.00

£ 320.00

This combination does not exist.

SKU: 320022

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
