Edge Welded Bellows, CF100, 102 mm ID × 132 mm OD, 47 mm Stroke, 83-130 mm Length Range

Edge Welded Bellows, CF100, 102 mm ID × 132 mm OD, 47 mm Stroke, 83-130 mm Length Range

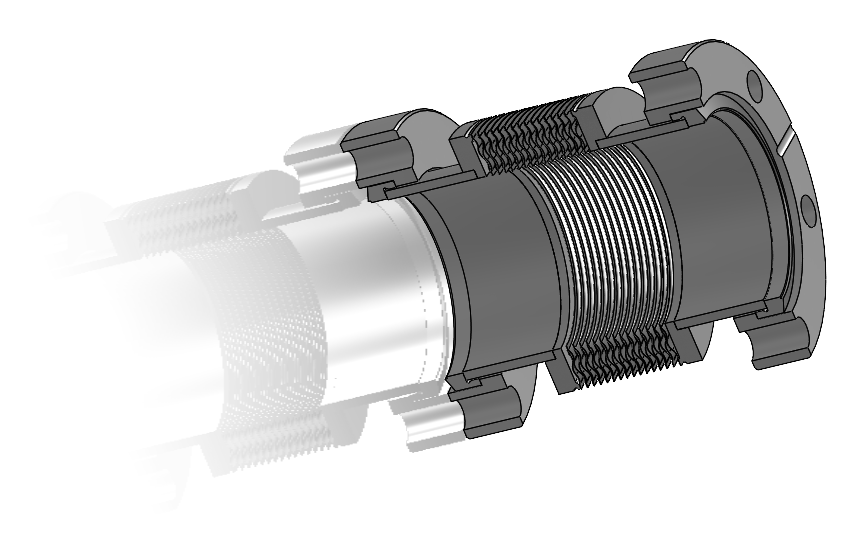

CF100 flanged edge welded bellows with a 102 mm internal diameter, 132 mm external diameter and 47 mm stroke. Offering high vacuum conductance together with excellent flexibility, it is well suited to larger vacuum chambers, beamlines and pumping systems.

£ 990.00 990.0 GBP £ 990.00

£ 990.00

This combination does not exist.

SKU: 320025

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276
