DVSL are well suited for industrial environments.

Specification:

• Pump Speed (§): 100
• Final pressure (50Hz): 30
• Motor power (kW): 0.3
• Voltage: 100, 115, 200, 230
• Weight: 15kg
• Water vapor capacity (g/Tag): 100 (With air flushing)
• Air flushing (L/min): 5 (With air flushing)
• Inlet connection NW: NW 25 (with Rc 3/8)
• Outlet connection NW: NW 16 (With Outlet valve)
• Cooling system: Air cooled
• Ambient temperature (°C): 5~40

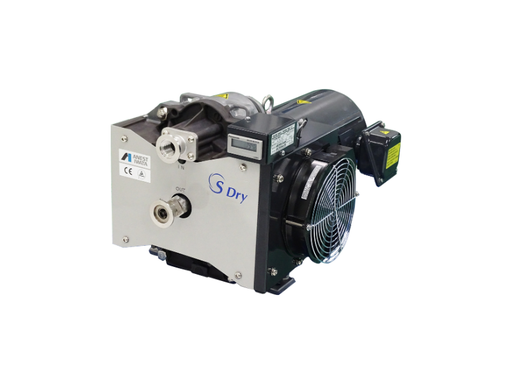

DVSL dry/oil-free scroll vacuum pump. DVSL are well suited for industrial environments.

Specification:

• Pump Speed (L/min): 100
• Final pressure (50Hz): 30
• Motor power (kW): 0.3
• Voltage: 100, 115, 200, 230
• Weight: 15kg
• Water vapor capacity (g/Tag): 100 (With air flushing)
• Air flushing (L/min): 5 (With air flushing)
• Inlet connection NW: NW 25 (with Rc 3/8)
• Outlet connection NW: NW 16 (With Outlet valve)
• Cooling system: Air cooled
• Ambient temperature (°C): 5~40

DVSL are well suited for industrial environments.

Specification:

• Pump Speed (§): 430
• Final pressure (50Hz): 30
• Motor power (kW): 0.9
• Voltage: 200, 208, 230, 380, 400, 415, 460
• Weight: 36kg
• Water vapor capacity (g/Tag): 250 (With air flushing)
• Air flushing (L/min): 10 (With air flushing)
• Inlet connection NW: NW 25 (with Rc 1/2)
• Outlet connection NW: NW 25 (With Outlet valve)
• Cooling system: Air cooled
• Ambient temperature (°C): 5~40
