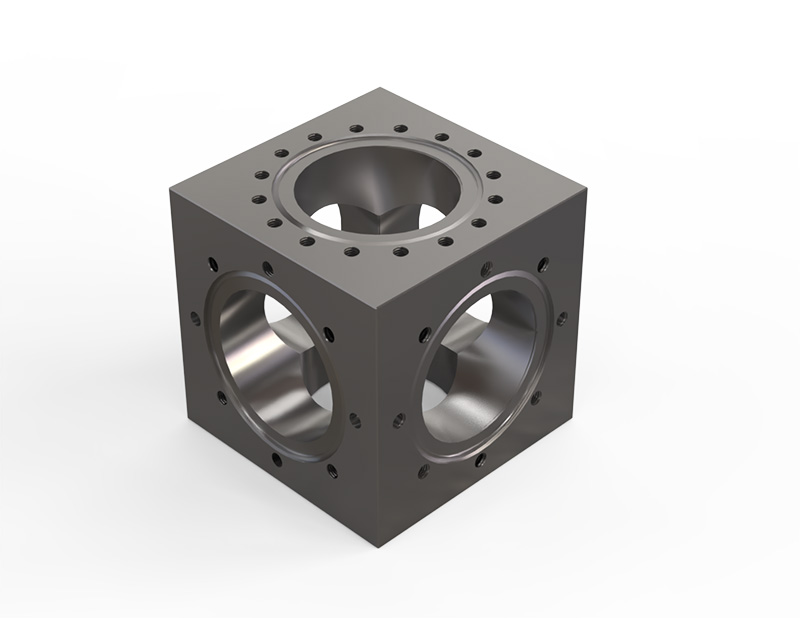

DN63CF 6-Way Cube, Single Piece Vacuum Chamber, 6 × DN63CF Ports

DN63CF 6 Way Cube

DN63CF 6-Way Cube, Single Piece Vacuum Chamber, 6 × DN63CF Ports

Machined from a single block of AISI 304L stainless steel, this six-way cube provides a compact and highly versatile vacuum chamber for UHV applications. Six DN63CF ports offer access on all faces, whilst additional bolt-hole patterns on two ports provide increased flexibility when orientating viewports, feedthroughs, and instrumentation. The cubic geometry makes this chamber particularly suitable for compact experimental rigs, vacuum test systems and general-purpose UHV development.

£ 1,100.00 1100.0 GBP £ 1,100.00

£ 1,100.00

This combination does not exist.

SKU: 100025

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features & Benefits -

AISI 304L Monolithic Construction
Zero welds for best vacuum performance
Eliminates virtual leaks and reduces outgassing
Predictable performance in long‑term UHV/XHV operation
Additional bolt holes to give options for flange orientation

6x DN63CF ports (2x with additional bolt holes)

Ultra‑Compact, High‑Performance Geometry

Minimal internal volume enables faster pump‑down
Integrated multi‑port layouts improve conductance and alignment

Ideal for tight optical systems, multiple connections where space is at a premium, and uniform plasma behaviour

Material Options for Every Application

Other materials are available:

Stainless steel AISI 316L: better corrosion resistance, improved high-temperature stability, and lower magnetic permeability compared to 304L.
Aluminium: lightweight, low magnetic permeability, excellent thermal conductivity, cost‑effective machining
Titanium: ultra‑low outgassing, magnetic neutrality, high strength with low mass

Each material is selected for its performance in advanced vacuum applications. Alternative seal materials may be required for alternative materials. Please get in touch with Concept Vacuum to discuss. Every chamber is fully compatible with CF (ISO3669) sealing technology and prepared to meet strict UHV cleanliness requirements.

UHV‑Ready by Design

All materials compatible with CF flanges (ISO3669)

Surfaces prepared for UHV cleanliness and finishing standards

Wide Application Range

Cold‑atom (MOT, molasses) experiments
Ion/electron traps (Penning, Paul, etc.)
Quantum computing and sensing
Compact connector
High‑precision spectroscopy and metrology

Custom & Standard Solutions

If you can’t find exactly what you want, please get in touch to discuss your requirements.

Off‑the‑shelf catalogue of optimised designs
Fully bespoke in-house machining for specialised geometries

Proven track record, including custom solutions for top research institutions

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
