Edge Welded Bellows, CF150, 150 mm ID × 180 mm OD, 44 mm Stroke, 96-140 mm Length Range

Edge Welded Bellows, CF150, 150 mm ID × 180 mm OD, 44 mm Stroke, 96-140 mm Length Range

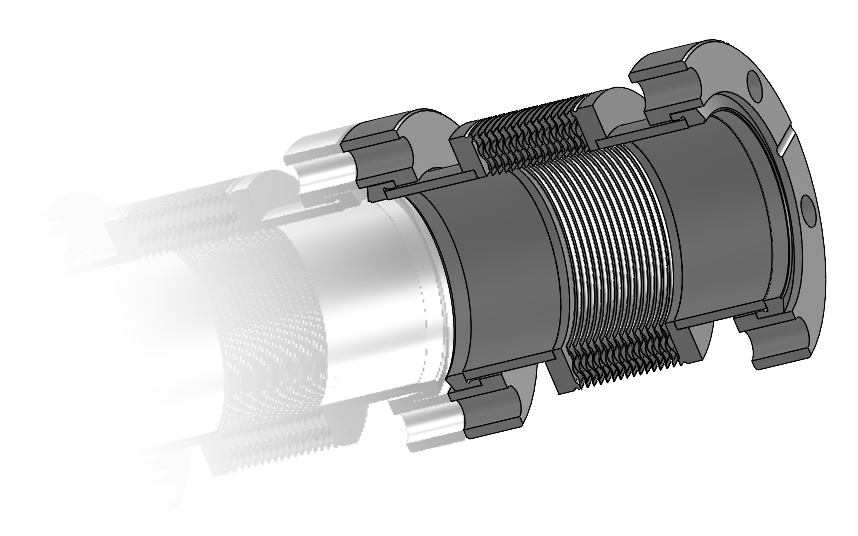

CF150 flanged edge welded bellows with a 150 mm internal diameter, 180 mm external diameter and 44 mm stroke. The large bore minimises conductance restrictions while accommodating movement caused by thermal expansion, installation tolerances and mechanical loading.

£ 1,190.00 1190.0 GBP £ 1,190.00

£ 1,190.00

This combination does not exist.

SKU: 320026

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276
