Edge Welded Bellows, CF200, 200 mm ID × 235 mm OD, 44 mm Stroke, 96-140 mm Length Range

Edge Welded Bellows, CF200, 200 mm ID × 235 mm OD, 44 mm Stroke, 96-140 mm Length Range

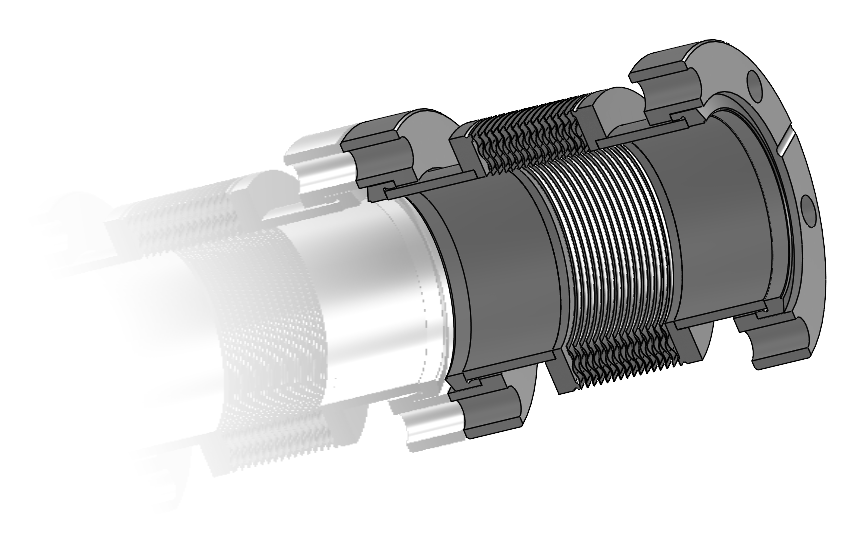

CF200 flanged edge welded bellows with a 200 mm internal diameter, 235 mm external diameter and 44 mm stroke. Intended for large chamber assemblies and high-throughput vacuum systems where maximum conductance and mechanical flexibility are critical.

£ 1,960.00 1960.0 GBP £ 1,960.00

£ 1,960.00

This combination does not exist.

SKU: 320027

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276
