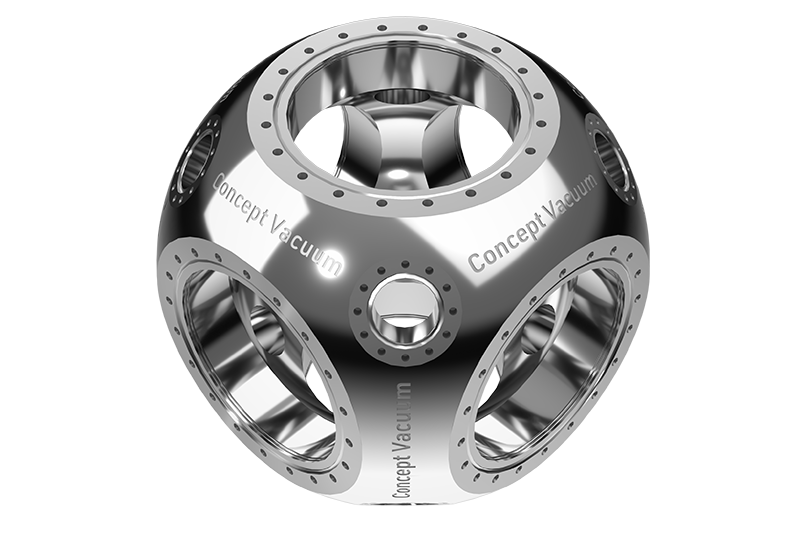

Spherical Single Piece Vacuum Chamber, 6 × DN150CF, 8 × DN40CF Ports

Spherical Single Piece Vacuum Chamber, 6 × DN150CF, 8 × DN40CF Ports

Machined from solid AISI 316L stainless steel, this spherical vacuum chamber combines excellent structural rigidity with highly symmetrical port access. Six DN150CF ports and eight DN40CF ports provide large-area optical access and convenient integration of pumps, viewports and instrumentation. The spherical geometry is particularly advantageous for cold atom, laser cooling and quantum optics experiments requiring uniform access around the central interaction region.

£ 10,780.00 10780.0 GBP £ 10,780.00

£ 10,780.00

This combination does not exist.

SKU: 100007

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features & Benefits

AISI 316L Monolithic Construction
Zero welds for best vacuum performance
Eliminates virtual leaks and reduces outgassing
Predictable performance in long‑term UHV/XHV operation
Equipment mounting grooves included

6x DN150CF and 8x DN40CF flanges

Ultra‑Compact, High‑Performance Geometry

Minimal internal volume enables faster pump‑down
Integrated multi‑port layouts improve conductance and alignment

Ideal for tight optical systems, steep field gradients, and uniform plasma behaviour

Material Options for Every Application

Other materials are available:

Aluminium: lightweight, low magnetic permeability, excellent thermal conductivity, cost‑effective machining
Titanium: ultra‑low outgassing, magnetic neutrality, high strength with low mass

Each material is selected for its performance in advanced vacuum applications. Alternative seal materials may be required for alternative materials. Please get in touch to discuss. Every chamber is fully compatible with CF (ISO3669) sealing technology and prepared to meet strict UHV cleanliness requirements.

UHV‑Ready by Design

All materials compatible with CF flanges (ISO3669)

Surfaces prepared for UHV cleanliness and finishing standards

Wide Application Range

Cold‑atom (MOT, molasses) experiments
Ion/electron traps (Penning, Paul, etc.)
Quantum computing and sensing
MBE/ALD surface science
High‑precision spectroscopy and metrology

Custom & Standard Solutions

If you can’t find exactly what you want, please get in touch to discuss your requirements.

Off‑the‑shelf catalogue of optimised designs
Fully bespoke in-house machining for specialised geometries (Add “in-house”)

Proven track record, including custom solutions for top research institutions
