Edge Welded Bellows, CF63, 63 mm ID × 85 mm OD, 44 mm Stroke, 76-120 mm Length Range

Edge Welded Bellows, CF63, 63 mm ID × 85 mm OD, 44 mm Stroke, 76-120 mm Length Range

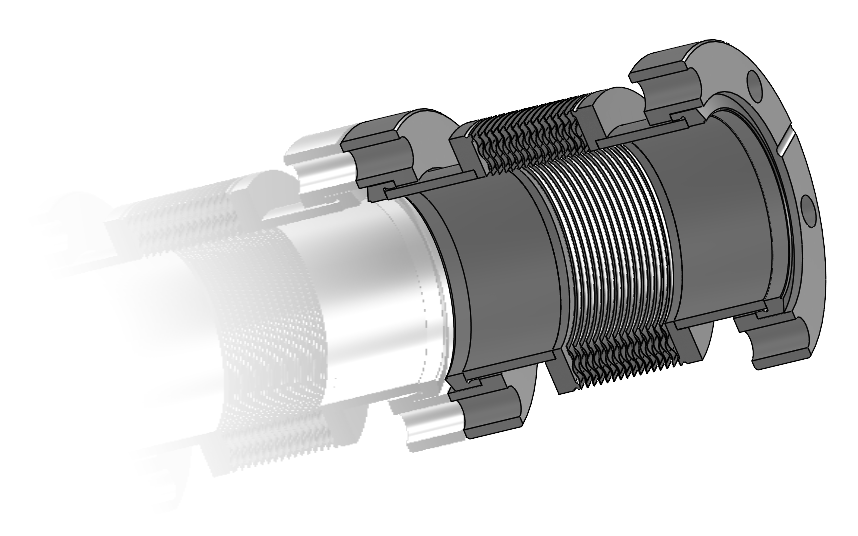

CF63 flanged edge welded bellows with a 63 mm internal diameter, 85 mm external diameter and 44 mm stroke. The increased stroke capability makes this model particularly suitable for vibration isolation, alignment adjustment and thermal expansion compensation between vacuum components.

£ 610.00 610.0 GBP £ 610.00

£ 610.00

This combination does not exist.

SKU: 320024

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276
