Edge Welded Bellows, CF35, 40 mm ID × 60 mm OD, 26 mm Stroke, 74-100 mm Length Range

Edge Welded Bellows, CF35, 40 mm ID × 60 mm OD, 26 mm Stroke, 74-100 mm Length Range

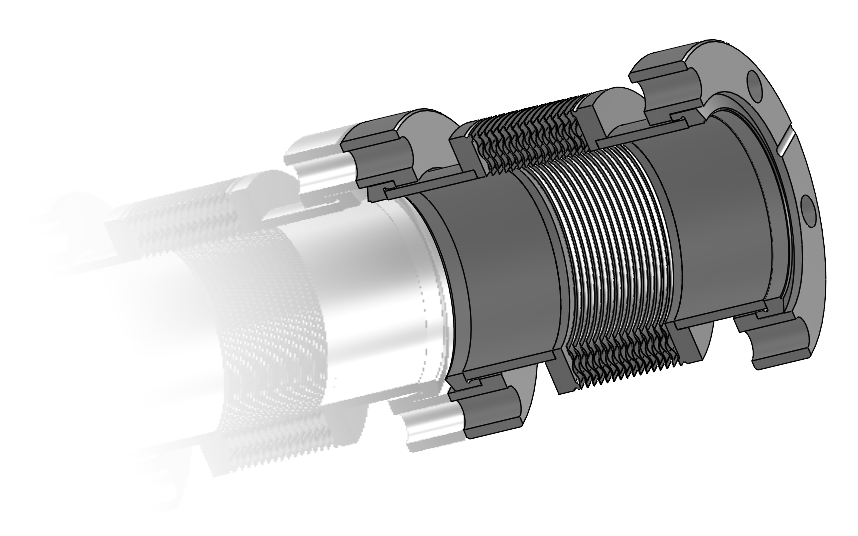

CF35 flanged edge welded bellows with a 40 mm internal diameter, 60 mm external diameter and 26 mm stroke. Designed for general-purpose vacuum connections, providing an excellent balance between conductance, flexibility and installation envelope in high and ultra-high vacuum systems.

£ 480.00 480.0 GBP £ 480.00

£ 480.00

This combination does not exist.

SKU: 320023

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Features and Benefits

Made in the UK: fabricated in-house for reliable quality control and responsive supply.

UHV compatible construction: 316L stainless steel bellows with 304L stainless steel CF flanges for demanding high vacuum and ultra-high vacuum applications.

Highly flexible design: edge-welded construction provides greater axial movement than hydraulically formed metal hoses.

CF flange compatibility: Use with standard gauges, instruments, feedthroughs and vacuum accessories.

Ideal for movement compensation: helps accommodate thermal expansion, vibration, minor misalignment and controlled motion in vacuum systems.

Low-profile assembly: compact bellows design supports installations where space is limited.

Other lengths available: alternative lengths available on request.

Other materials available: AM350, Inconel 625, Inconel 718, Hastelloy C-276

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
