Bespoke Chambers & Accessories

Bespoke Chambers & Accessories

· We have been manufacturing a huge and diverse range of chambers and accessories, day after day for nearly 14 years, delivering them on time to our customers around the world,
· Our custom built premises have been designed and built specifically to optimise our vacuum chamber and accessory manufacturing business.
· Working in ultra-high vacuum can be challenging and expensive, so we go to great lengths to ensure that that you have the best chamber for your system.

This combination does not exist.

SKU: BESPOKE-CHAMBERS

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

We provide

Many years of expertise in manufacturing high quality ultra-high vacuum chambers, delivered on time, providing confidence in your chamber
The experience with which to meet the most challenging of needs. We have designed and built so many chambers that we know how to optimise solutions
Machines costing hundreds of thousands of pounds each, ensuring precision and repeatability, time after time
Engineers who understand the needs of ultra-high vacuum systems and build chambers accordingly
Drawings, using Solidworks, or we can work from your drawings
Help with design if needed, using our experience with materials, costs and construction
Very experienced and skilled Tig welders who have been welding different types of chamber, day in, day out, for many years, providing confidence in your chamber.

Leak testing in QC to make absolutely sure that the quality of the chamber is the quality that we expect

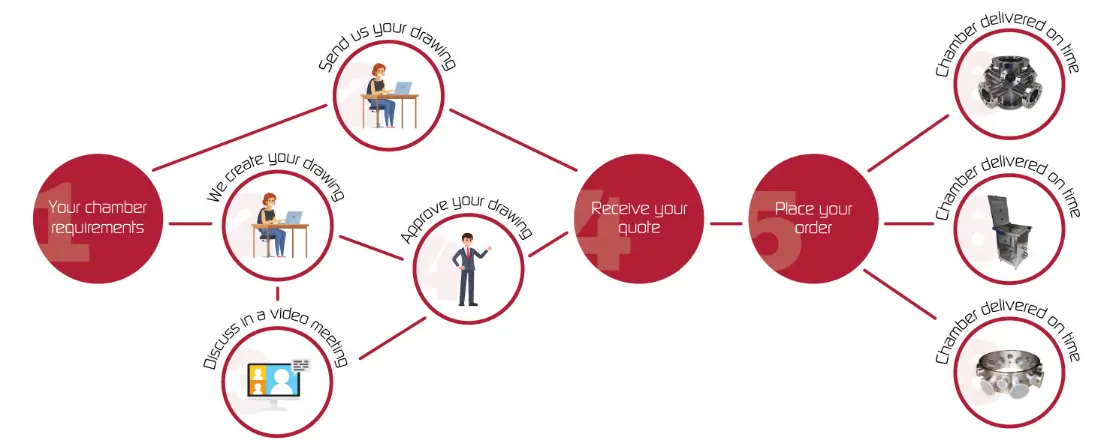

We can do as much or as little as you want us to do and we can liaise with you to become a part of your team.

Please call or email our friendly team on +44 (0) 1424 447726 To see how we can help with your vacuum needs.
