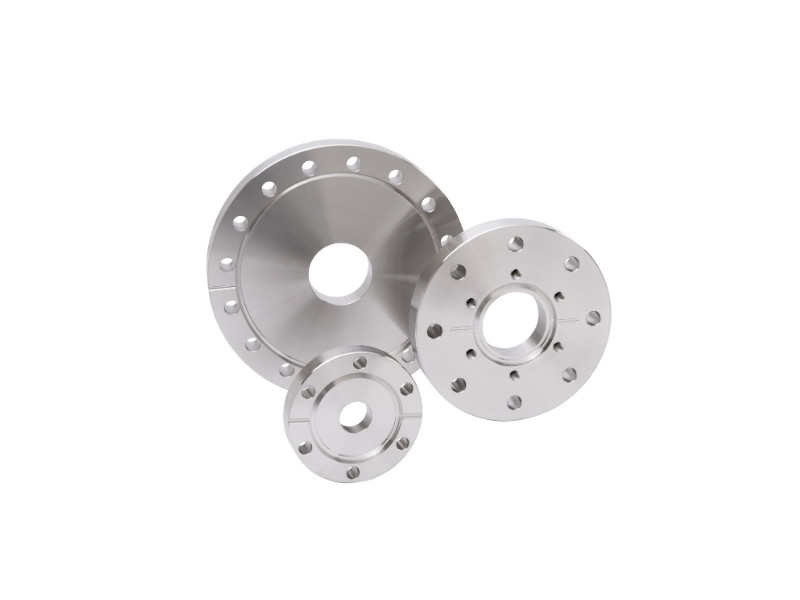

CF200 to CF63 Zero Length Flange Adaptor

CF200 to CF63 Zero Length Flange Adaptor

CF Zero Length flange adaptors are used to change from one size of tube or flange to another size enabling the fitting together of mismatched components and there is limited space.

Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with protective plastic caps.

The CF Zero Length flange adaptors are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: 304L Stainless Steel
• Bakeable to 150°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows, crosses, tees and adaptors are available

FlangeSize
Material
Tubulated/Zero Length
Flange conversion from/to

This combination does not exist.

SKU: ZL2063

CF Zero Length Flange Adaptors

FlangeSize: CF200 to CF63

Material: 304L

Tubulated/Zero Length: Zero length

Flange conversion from/to: CF to CF reducing
