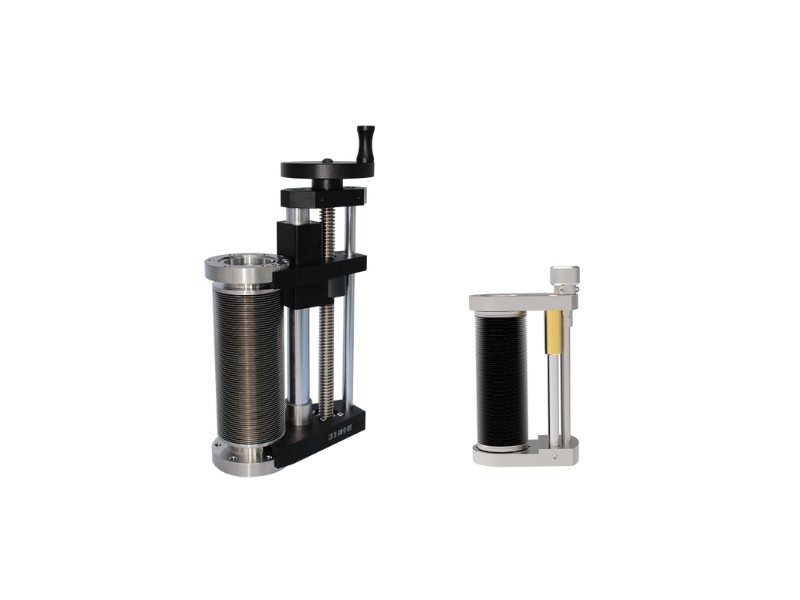

Linear Translator (Manual) 150mm Travel, CF70 Flange

Linear Translator (Manual) 150mm Travel, CF70 Flange

The linear drive adopts a trapezoidal screw structure to ensure the smooth operation of the upper flange, making the sample transfer more accurate and stable in the ultra-high vacuum environment.

This product is available in different flange specifications and strokes. The standard configuration is manual drive, if you need motor drive, please contact us.

• Working Pressure: 10-11 mbar ~ 1 bar
• Bakeable to 150℃
• Welded Bellows Seal with SS 316
• Tapped Flanges on Both Sides
• Etched Scale in 1 mm Increments

£ 1,713.00 1713.0 GBP £ 1,713.00

£ 1,713.00

FlangeSize
Travel
Actuation

This combination does not exist.

SKU: LTM35L150M

Linear Translators

FlangeSize: CF70

Travel: 150mm

Actuation: Manual

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

Diagram & Dimensions

This product: LTM35L150M
