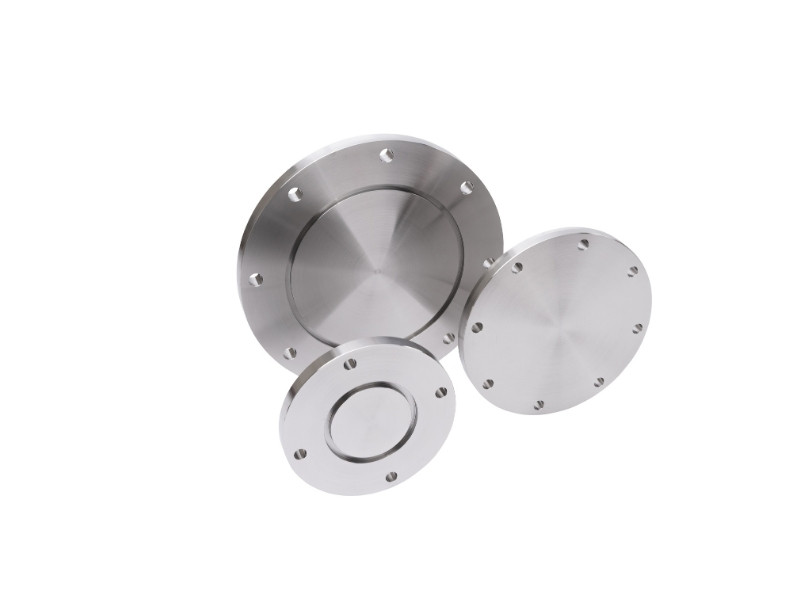

ISO500 Fixed Bolted Blank Flange

ISO500 Fixed Bolted Blank Flange

ISO Fixed Bolted Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.

Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Blank Flanges are supplied in a plastic bag.

ISO Fixed Bolted Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

Blank/Bored
FlangeSize
Material
Material
Flange Type

This combination does not exist.

SKU: ISO500FBK

ISO Fixed Bolted Blank Flanges

Blank/Bored: Blank

FlangeSize: ISO500

Material: 304, 304

Flange Type: Fixed Bolted

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
