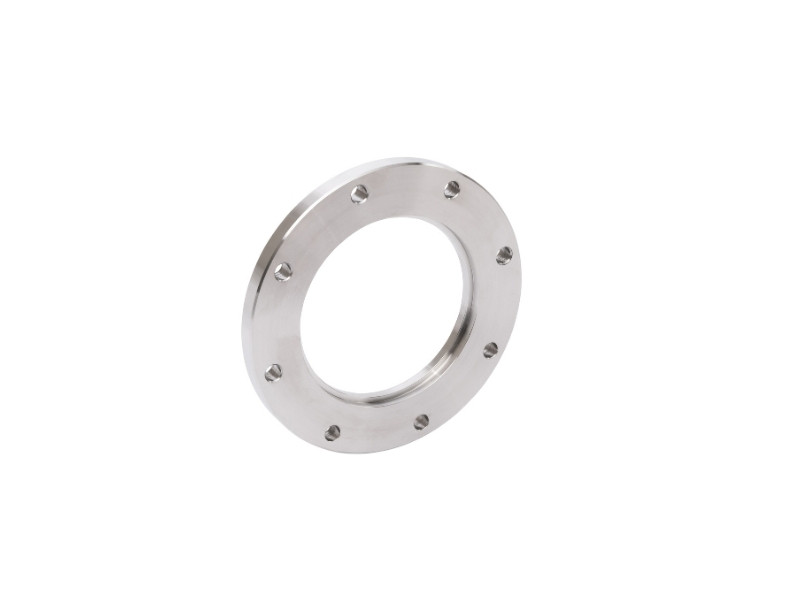

ISO500 Bored 508mm Fixed Bolted Flange

ISO500 Bored 508mm Fixed Bolted Flange

ISO Fixed Bolted Bored Flanges are used for welding onto tube to produce ports and connectors when manufacturing fabrications.

Manufactured from: 304 Stainless Steel. ISO Fixed Bolted Bored Flanges are supplied in a plastic bag.

ISO Fixed Bolted Bored Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

Blank/Bored
FlangeSize
Material
Material
Flange Type

This combination does not exist.

SKU: ISO500F508

ISO Fixed Bolted Bored Flanges

Blank/Bored: Bored

FlangeSize: ISO500

Material: 304, 304

Flange Type: Fixed Bolted

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
