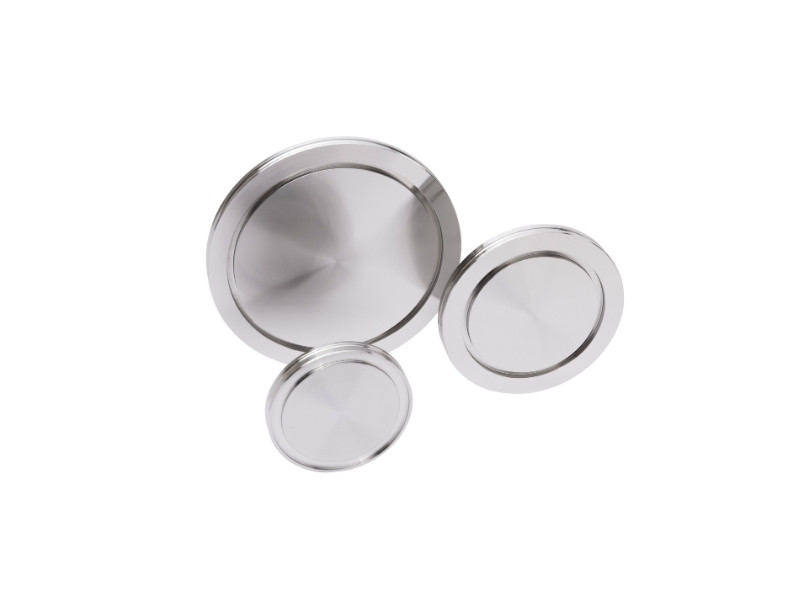

ISO250 Claw Clamp Blank Flange

ISO250 Claw Clamp Blank Flange

ISO Claw Clamp Blank Flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.

Manufactured from: 304 Stainless Steel. ISO Claw Clamp Blank Flanges are supplied in a plastic bag with a protective plastic cap.

ISO Claw Clamp Blank Flanges are manufactured to the ISO Standard and are compatible with other supplier’s product.

£ 135.70 135.7 GBP £ 135.70

£ 135.70

Blank/Bored
FlangeSize
Material
Material
Flange Type

This combination does not exist.

SKU: ISO250BK

ISO Claw Clamp Blank Flanges

Blank/Bored: Blank

FlangeSize: ISO250

Material: 304, 304

Flange Type: Claw Clamp

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
