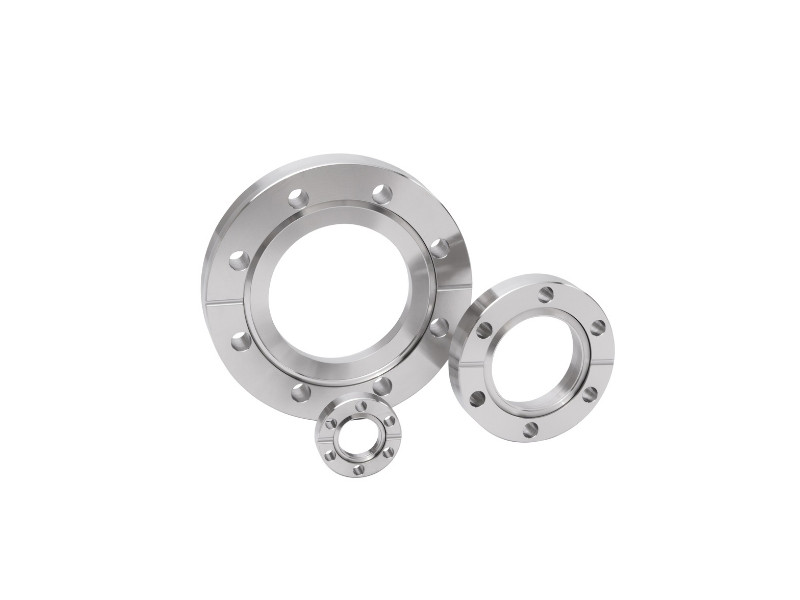

CF63 Bored Rotatable Tapped Flange, 63.5mm ID

CF63 Bored Rotatable Tapped Flange, 63.5mm ID

CF Bored Flanges Rotatable are used for welding onto tube to produce ports and connectors when mating with fabrications with the bolt holes in different alignments.

Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.

Rotatable CF Bored Flanges are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: 304L Stainless Steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows, crosses, tees and adaptors are available
• Tubulated flanges are available for welding to stainless steel tube
* European standard, to be used with copper gasket OD 272.7 mm

£ 60.25 60.25 GBP £ 60.25

£ 60.25

Blank/Bored
FlangeSize
Fixed/Rotatable
Fixed/Rotatable
Material
Material
Bolt Holes

This combination does not exist.

SKU: F63R63T

CF Bored Flanges - Rotatable

Blank/Bored: Bored

FlangeSize: CF63

Fixed/Rotatable: Rotatable, Rotatable

Material: 304L, 304L

Bolt Holes: Tapped

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.
