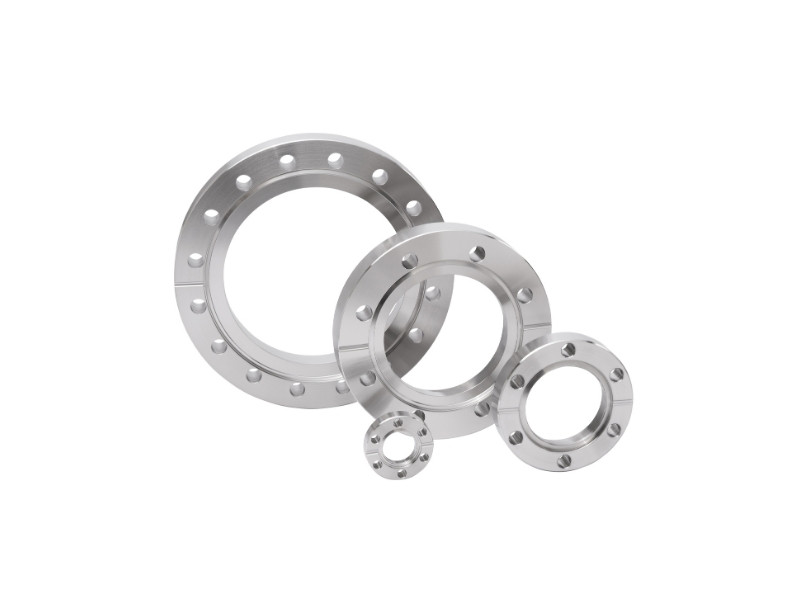

CF35 Fixed Bored CF Flange, 70mm OD 41mm ID

CF35 Fixed Bored CF Flange, 70mm OD 41mm ID

CF Bored Flanges Fixed are used for welding onto tube to produce ports and connectors when manufacturing fabrications. Manufactured from: 304L and 316L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap. CF Bored Flanges Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: 304L Stainless Steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows, crosses, tees and adaptors are available
• Tubulated flanges are available for welding to stainless steel tube

PLEASE NOTE: Before adding to quote, please select tapped or un-tapped bolt holes from the drop down menu.
* European standard, to be used with copper gasket OD 272.7 mm

£ 11.99 11.99 GBP £ 11.99

£ 11.99

Blank/Bored
FlangeSize
Fixed/Rotatable
Fixed/Rotatable
Material
Material
Bolt Holes

This combination does not exist.

SKU: F35B41

CF Bored Flanges – Fixed

Blank/Bored: Bored

FlangeSize: CF35

Fixed/Rotatable: Fixed, Fixed

Material: 304L, 304L

Bolt Holes: Un-tapped

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.

If you require any additional information regarding this product please contact us via the form below or call us on +44 (0) 1424 447726
