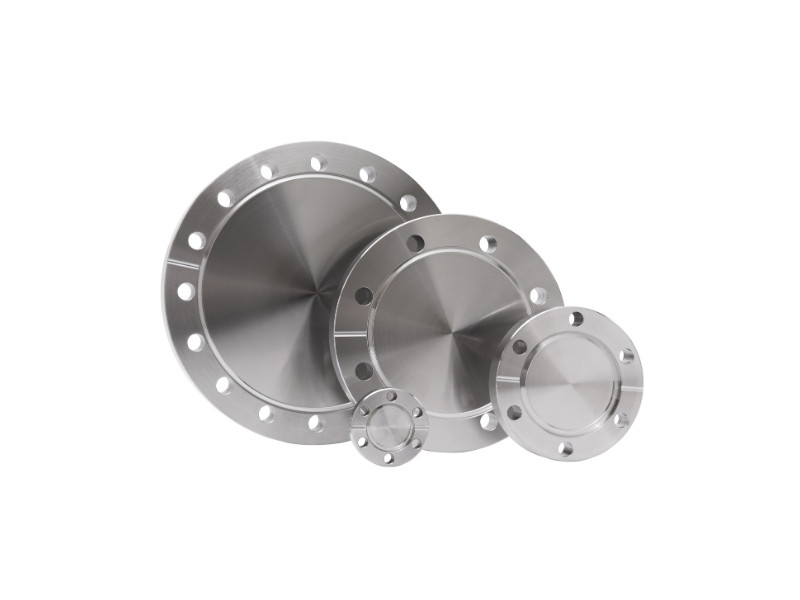

CF35 Fixed Blank Flange

CF35 Fixed Blank Flange

CF Blank flanges are used to cap off the open ports where not required and are also used as a base part to manufacture adaptor fittings, instruments, feedthroughs etc.

Manufactured from: 304L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap.

The CF Blank flanges are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: Stainless Steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows, crosses, tees and adaptors are available
• Tubulated flanges are available for welding to stainless steel tube

* European standard, to be used with copper gasket OD 272.7 mm

£ 16.14 16.14 GBP £ 16.14

£ 16.14

Blank/Bored
FlangeSize
Fixed/Rotatable
Fixed/Rotatable
Material
Material
Bolt Holes

This combination does not exist.

SKU: F35

CF Blank Flanges|Featured Products

Blank/Bored: Blank

FlangeSize: CF35

Fixed/Rotatable: Fixed, Fixed

Material: 304L, 304L

Bolt Holes: Un-tapped
