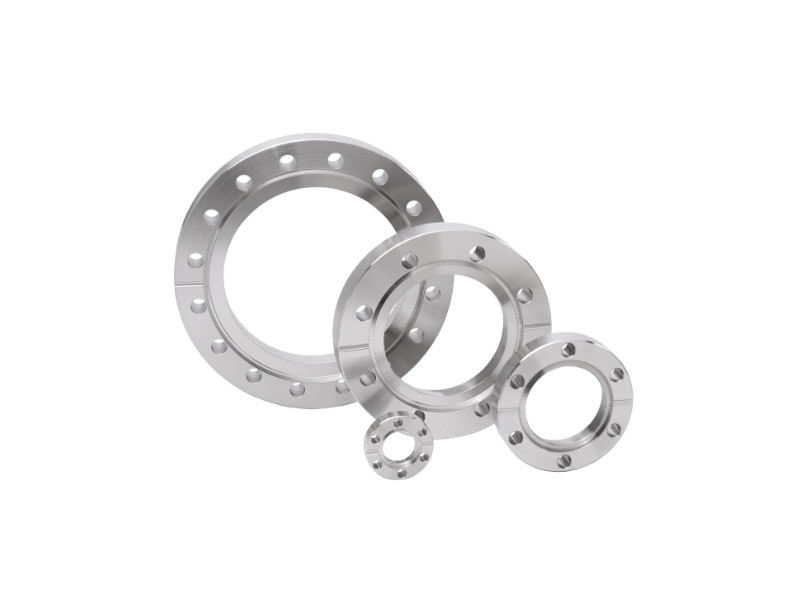

CF250 - Bored Tapped Flange, 254mm ID

CF250 - Bored Tapped Flange, 254mm ID

CF Bored Flanges Fixed are used for welding onto tube to produce ports and connectors when manufacturing fabrications. Manufactured from: 304L and 316L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap. CF Bored Flanges Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: 304L Stainless Steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows, crosses, tees and adaptors are available
• Tubulated flanges are available for welding to stainless steel tube

* European standard, to be used with copper gasket OD 272.7 mm

Blank/Bored
FlangeSize
Fixed/Rotatable
Fixed/Rotatable
Material
Material
Bolt Holes

This combination does not exist.

SKU: F250BT

CF Bored Flanges – Fixed

Blank/Bored: Bored

FlangeSize: CF250

Fixed/Rotatable: Fixed, Fixed

Material: 304L, 304L

Bolt Holes: Tapped
