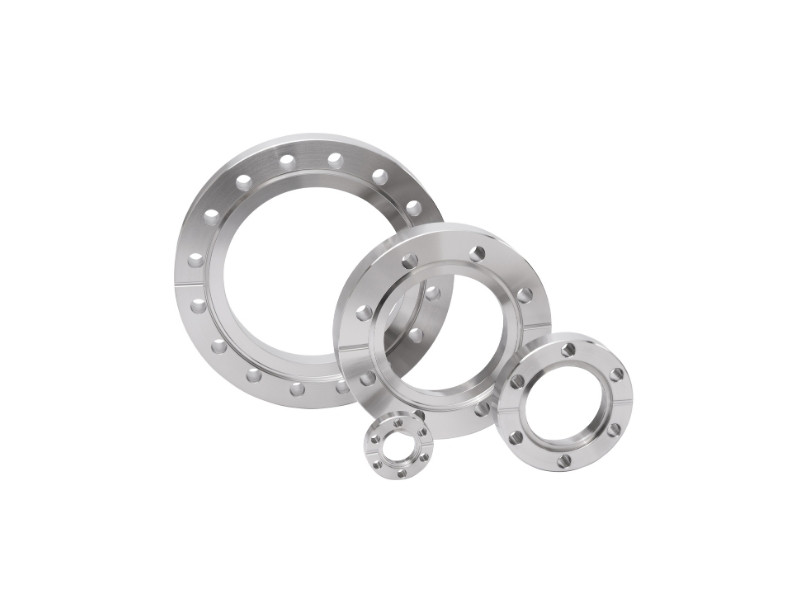

CF100 Fixed Bored Flange, 152mm OD 102mm ID

CF100 Fixed Bored Flange, 152mm OD 102mm ID

CF Bored Flanges Fixed are used for welding onto tube to produce ports and connectors when manufacturing fabrications. Manufactured from: 304L and 316L Stainless Steel. They are supplied in a plastic bag with a protective plastic cap. CF Bored Flanges Fixed are manufactured to the CF Standard and are compatible with other supplier’s product.

• Material: 304L Stainless Steel
• Bakeable to 450°C
• Vacuum Rating 1×10-11 mbar
• Wide range of elbows, crosses, tees and adaptors are available
• Tubulated flanges are available for welding to stainless steel tube

* European standard, to be used with copper gasket OD 272.7 mm

£ 47.90 47.9 GBP £ 47.90

£ 47.90

Blank/Bored
FlangeSize
Fixed/Rotatable
Fixed/Rotatable
Material
Material
Bolt Holes

This combination does not exist.

SKU: F100B

CF Bored Flanges – Fixed

Blank/Bored: Bored

FlangeSize: CF100

Fixed/Rotatable: Fixed, Fixed

Material: 304L, 304L

Bolt Holes: Un-tapped
