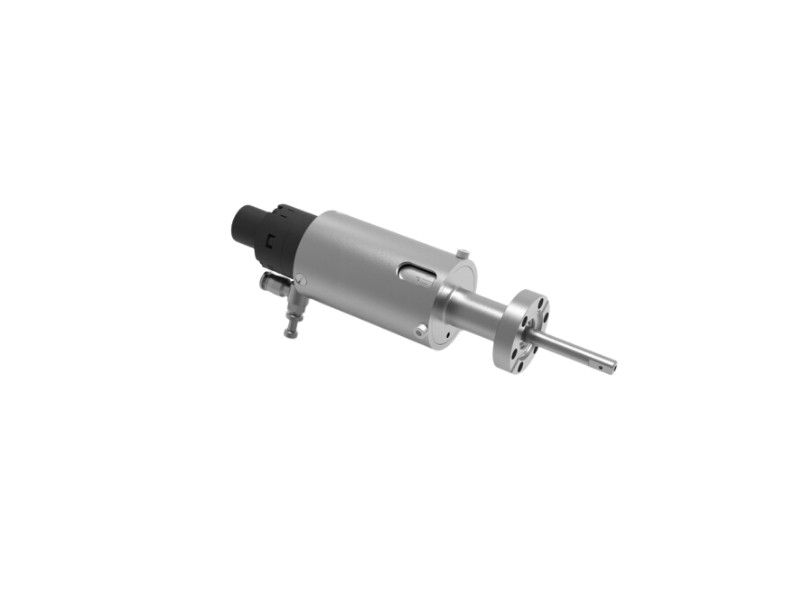

Angle Adjustable Magnetic Rotary Feedthrough, 0°-180°, CF16 Flange, 1/4" Shaft (pneumatic)

https://ultrahighvacuum.com/web/image/product.template/16410/image_1920?unique=af874cb

Magnetically coupled rotary feedthroughs offer a fail-safe method, over the more traditional bellows or fluidic seals, to enable rotation in a vacuum system. Additionally, some applications can benefit from discrete angle rotation between two fixed points such as shutters protecting sputter sources from cross-contamination in a deposition system.

The new range of angle-adjustable magnetic rotary feedthroughs are available with either manual or pneumatic actuation and allow the user to adjust the angle of rotation from 0° to 180°.

Features:

• Fail-safe magnetic coupling
• UHV rated to 10-11 mbar
• No backlash under load
• Laser etched scale in 5° increments
• Pneumatic actuation
• Adjustable angle range 0°-180°

£ 575.50 575.5 GBP £ 575.50

£ 575.50

Not Available For Sale

  • FlangeSize
  • Actuation

This combination does not exist.

SKU: MR16R180P-XW6.35
Contact Us
Bellow Sealed Rotary Feedthroughs
FlangeSize: CF16
Actuation: Pneumatic

Terms and Conditions
Shipping: Standard off-the-shelf stock items will be delivered within 3-5 working days. Non-stock and bespoke products will be advised on an individual basis.
