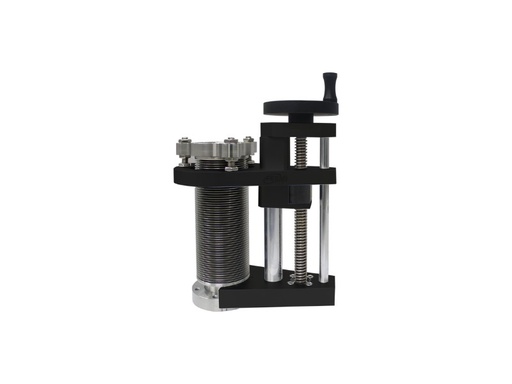

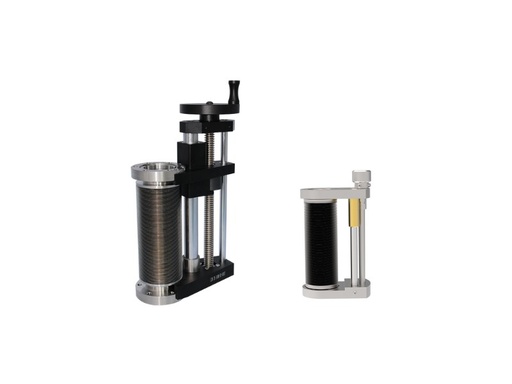

The Linear Drive with Adjustable Flange is based on the standard LTM series and integrates an adjustable flange to allow tilt within ±3° for final alignment, useful for beamline calibration diagnostics or ion/sputter source calibration, etc. Adjustment is achieved by three screws. This series of adjustable flanges are equipped with corresponding bolt holes on the basis of standard flanges.

The standard configuration is manual drive, if you need motor drive, please contact us.

• Working Pressure: 10-11 mbar ~ 1 bar
• Bakeable to 150°C
• Welded Bellows Seal with SS 316
• Tapped Flanges on Both Sides
• Angular tilt: ±3°
• Etched Scale in 1 mm Increments

The Linear Drive with Adjustable Flange is based on the standard LTM series and integrates an adjustable flange to allow tilt within ±3° for final alignment, useful for beamline calibration diagnostics or ion/sputter source calibration, etc. Adjustment is achieved by three screws. This series of adjustable flanges are equipped with corresponding bolt holes on the basis of standard flanges.

The standard configuration is manual drive, if you need motor drive, please contact us.

• Working Pressure: 10-11 mbar ~ 1 bar
• Bakeable to 150°C
• Welded Bellows Seal with SS 316
• Tapped Flanges on Both Sides
• Angular tilt: ±3°
• Etched Scale in 1 mm Increments

The Linear Drive with Adjustable Flange is based on the standard LTM series and integrates an adjustable flange to allow tilt within ±3° for final alignment, useful for beamline calibration diagnostics or ion/sputter source calibration, etc. Adjustment is achieved by three screws. This series of adjustable flanges are equipped with corresponding bolt holes on the basis of standard flanges.

The standard configuration is manual drive, if you need motor drive, please contact us.

• Working Pressure: 10-11 mbar ~ 1 bar
• Bakeable to 150°C
• Welded Bellows Seal with SS 316
• Tapped Flanges on Both Sides
• Angular tilt: ±3°
• Etched Scale in 1 mm Increments

Adjustable flanges can be used to adjust the distance and angular relationship between two flanges. This product uses CF standard flange, and each model can provide an adjustment range of ±5mm in the axial direction and ±3° in the radial direction.

• Mounted in any orientation
• Working Pressure: 10-11 mbar~1 bar
• Bakeable to 200℃
• Welded Bellows Seal with SS 316
• Clear Hole Flanges on Both Sides
• Angular Tilt: ±3°
• Axial Adjustment: ±5 mm

Adjustable flanges can be used to adjust the distance and angular relationship between two flanges. This product uses CF standard flange, and each model can provide an adjustment range of ±5mm in the axial direction and ±3° in the radial direction.

• Mounted in any orientation
• Working Pressure: 10-11 mbar~1 bar
• Bakeable to 200℃
• Welded Bellows Seal with SS 316
• Clear Hole Flanges on Both Sides
• Angular tilt: ±3°
• Axial Adjustment: ±5 mm

Adjustable flanges can be used to adjust the distance and angular relationship between two flanges. This product uses CF standard flange, and each model can provide an adjustment range of ±5mm in the axial direction and ±3° in the radial direction.

• Mounted in any orientation
• Working Pressure: 10-11 mbar~1 bar
• Bakeable to 200℃
• Welded Bellows Seal with SS 316
• Clear Hole Flanges on Both Sides
• Angular tilt: ±3°
• Axial Adjustment: ±5 mm

Adjustable flanges can be used to adjust the distance and angular relationship between two flanges. This product uses CF standard flange, and each model can provide an adjustment range of ±5mm in the axial direction and ±3° in the radial direction.

• Mounted in any orientation
• Working Pressure: 10-11 mbar~1 bar
• Bakeable to 200℃
• Welded Bellows Seal with SS 316
• Clear Hole Flanges on Both Sides
• Angular tilt: ±3°
• Axial Adjustment: ±5 mm

Adjustable flanges can be used to adjust the distance and angular relationship between two flanges. This product uses CF standard flange, and each model can provide an adjustment range of ±5mm in the axial direction and ±3° in the radial direction.

• Mounted in any orientation
• Working Pressure: 10-11 mbar~1 bar
• Bakeable to 200℃
• Welded Bellows Seal with SS 316
• Clear Hole Flanges on Both Sides
• Angular tilt: ±3°
• Axial Adjustment: ±5 mm
