Linear Translator with Aluminum Frame (Manual) 75mm Travel
Linear Translator with Aluminum Frame (Manual) 75mm Travel, +/-3mm Degree Tilt, CF70 Flange
Linear drive with adjustable flange back plate, integrated adjustable flange and aluminum plate frame support, both stability and accuracy, moving flange end allows ±3° deflection, can carry heavy parts in ultra-high vacuum environment of transportation.

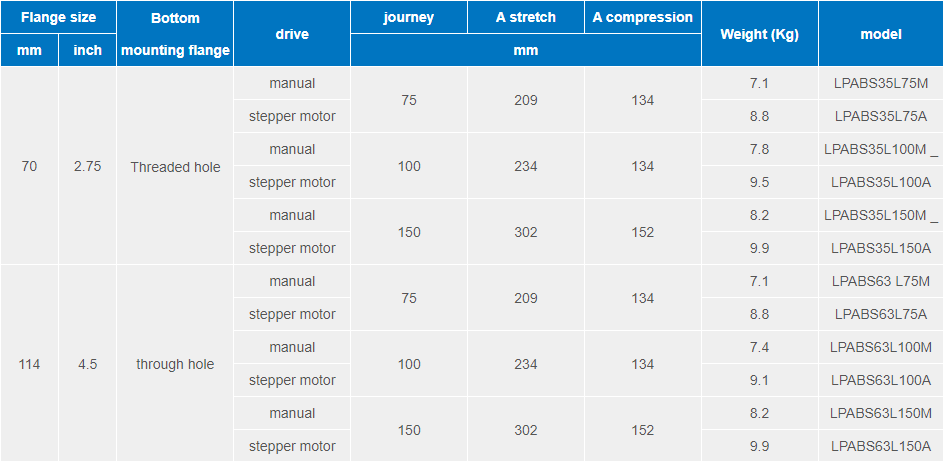

This product has a variety of stroke options, manual drive or electric drive, and can be customized.
● Working Pressure: 10-11 mbar~1 bar
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Angular tilt: ±3°
● Top mounting flange: CF flange, tapped hole
● Etched Scale in 1 mm Increments
