Compact XYZ Stage, 100mm Z Travel

SKU: SXYZ63Z100 Category:

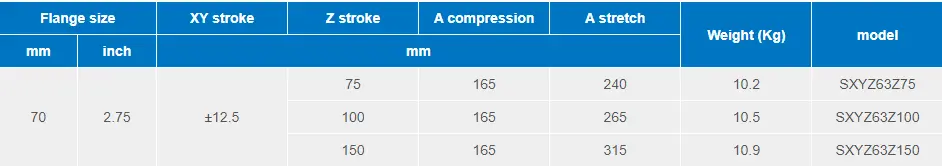

Compact XYZ Stage, 100mm Z Travel, +/-12.5mm XY Travel, CF70 Travelling Flange, CF114 Mounting Flange

The compact 3D translation stage is compact and provides precise motion and sample position control in ultra-high vacuum environments. The X/Y direction adopts the differential head control, and the Z direction adopts the screw to make it run more smoothly. Welded stainless steel bellows allow the NW35CF mobile flange to move within a limited range. Mounting flange optional, NW35CF or NW63CF.

● Working Pressure:10-11 mbar~1 bar
● Manual Actuator
● Bakeable to 150℃
● Welded Bellows Seal with SS 316
● Micrometer with 10um Resolution
● Z-motion scale in 1mm increment
● Top mounting flange: CF35, tapped hole
● Bottom mounting flange: CF63, clear hole
